STATIC VAR GENERATOR
STATIC VAR GENERATOR - Image 2
STATIC VAR GENERATOR - Image 3

STATIC VAR GENERATOR

ELEKTRA DynamiX Static VAr Generators provide a complete solution for industrial and commercial facilities with dynamic variations in reactive power, poor power factor and unbalanced loads. Their modular design and compact structure allows scaling up the reactive power rating easily and make them ideal for stepless power factor correction, load balancing and also harmonic filtering in industrial and commercial buildings. Some key features of ELEKTRA DynamiX Static VAr Generators are:

  • Reactive power rating up to 400kVAr for each cabinet
    • Instantaneous reactive power support
    • Dynamic reaction time of 31.25 μs
    • Compensate both inductive and capacitive loads and achieve 0.99 P.F.
    • Supports three-wire (3W) and four-wire (4W) installations
    • Hotswap supported on rack-modules
    • Load balancing
Contact For More Details
Description
Reviews (0)

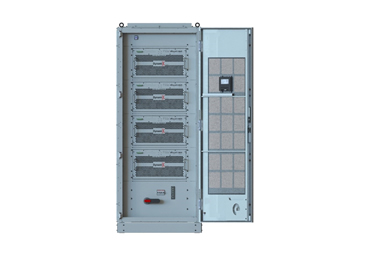

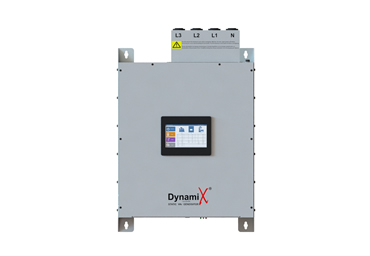

ELEKTRA DynamiX Static VAr Generators come in two options. One is Wall mount structure and other is rack type modular structure. In both cases the products provide identical performance. In both cases the products provide identical performance. Wall mount units are available in 50kVAr and 100kVAr ratings. Rack type system can include up to 400kVAr rating in one cabinet. User can install as many cabinets as needed to achieve desired reactive power rating. Technical specifications for Wall mount and floor mount DynamiX Static VAr Generator units are tabulated below.
