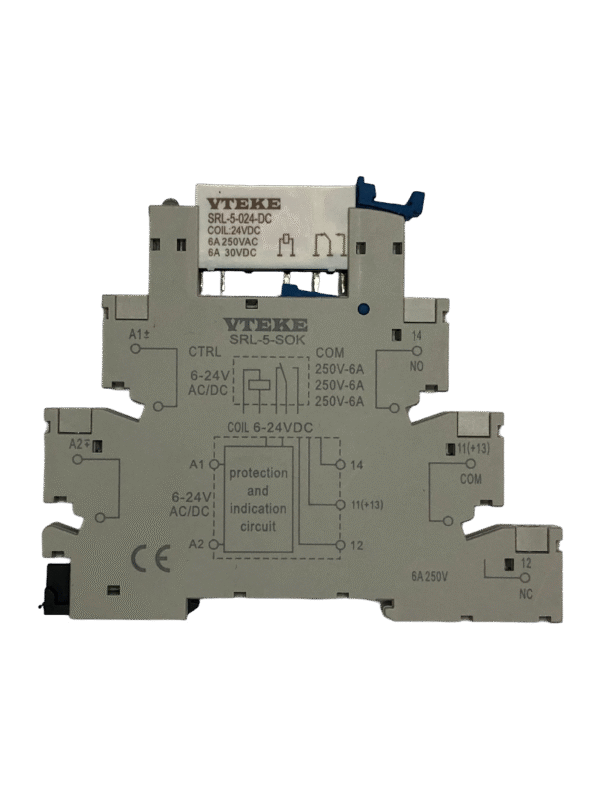

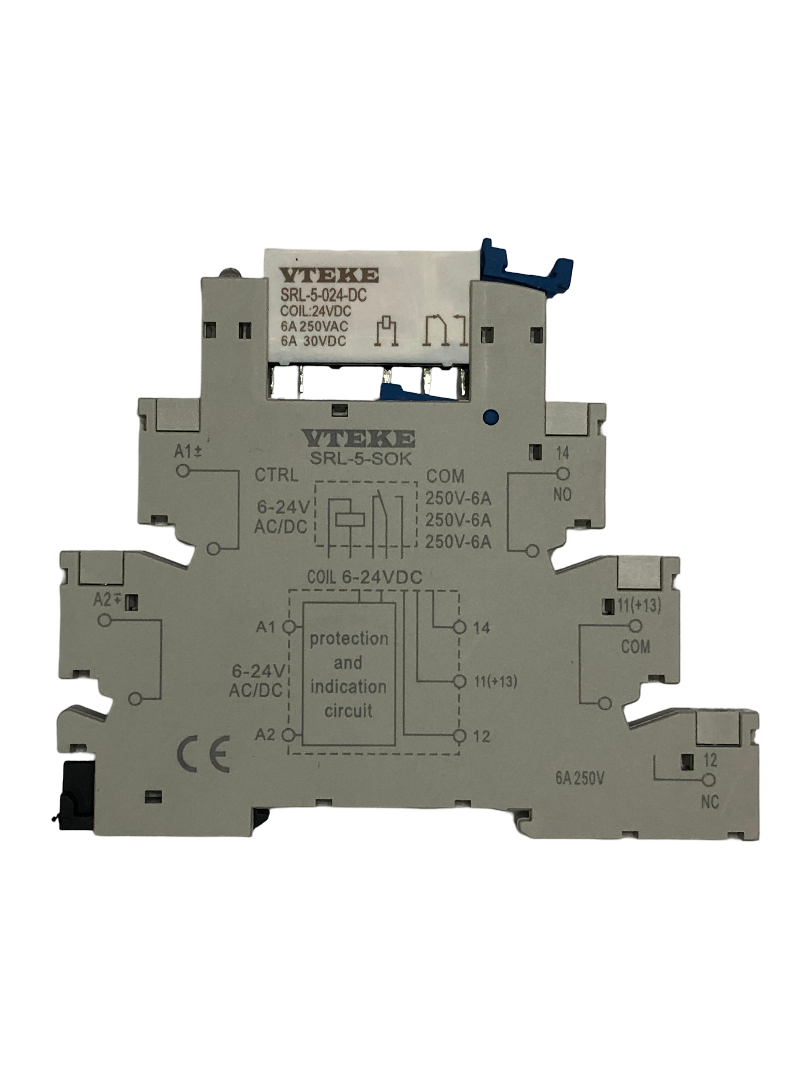

PLC RELAY (SRL SERIES)

This relay is manufactured according to IEC- 61810-1 standard.

Contact is rated to 10A. It is occupied with test mechanism and indication LED.

AC relays has orange color mechanism parts while DC relays has blue mechanism parts.

Description
Reviews (0)

Socket Deminsion

Dimension

Technical Data

Parameter Value
Contact Form 1Z
Rated Load 6A 250VAC/30VDC
Electrical / Mechanical life ≥ 100000 times / 10000000 times
Initial Contact Resistance ≤ 100 mΩ (1A 6VDC)
Contact Material 𝐀𝐠𝐒𝐧𝑶_𝟐 AgNi
Insulation Resistance ≥ 1000MΩ (500VDC)
Dielectric Strength Between open contacts ≥ 1000 VAC/1min
Between contact and coil ≥ 4000 VAC/ 1min
Operate / Release time ≥ 8ms / 8ms
Terminal Type Plug In / PCB
Operating Power DC 0.17 W (48760 VDC 0.21W)
