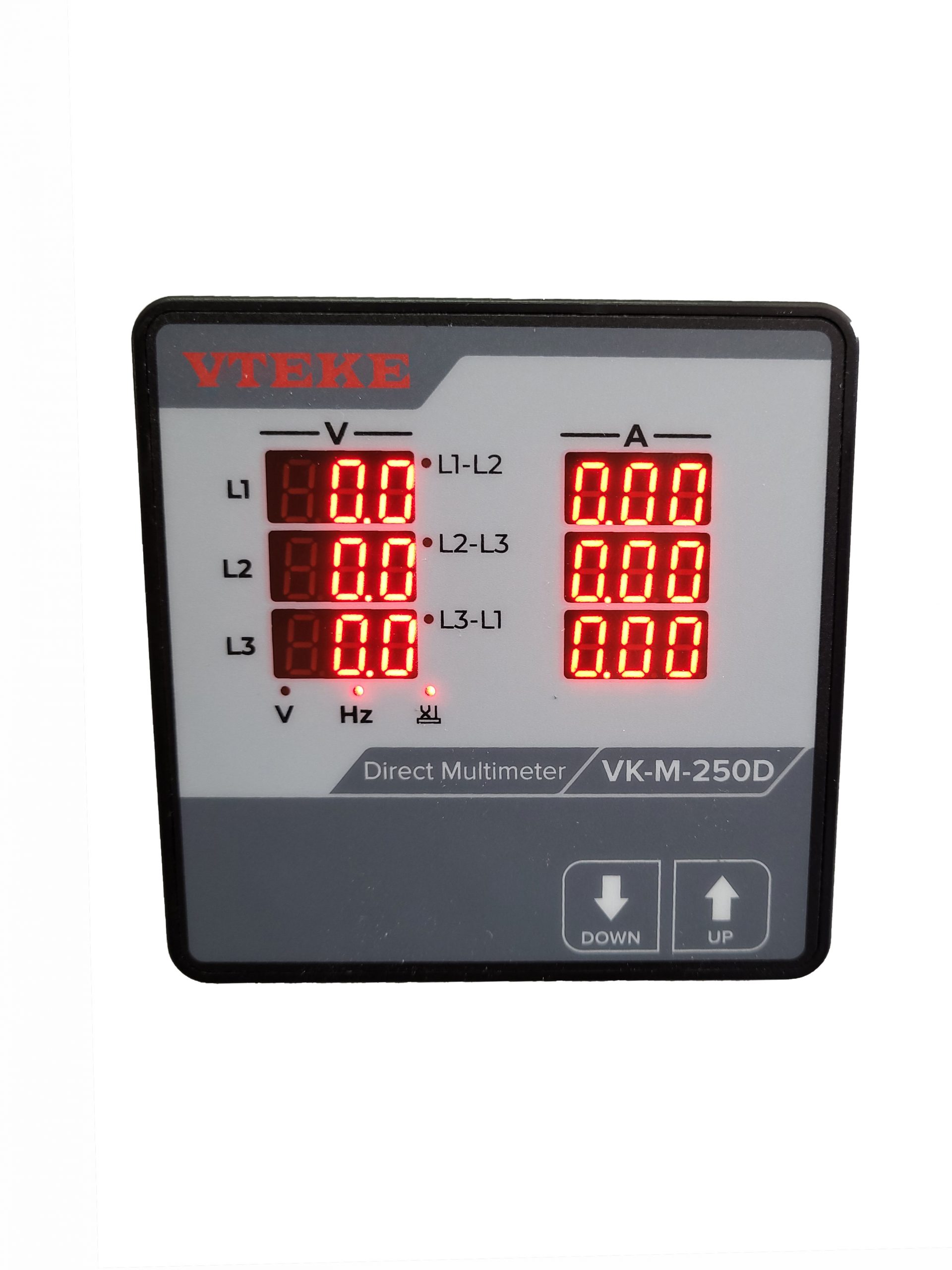

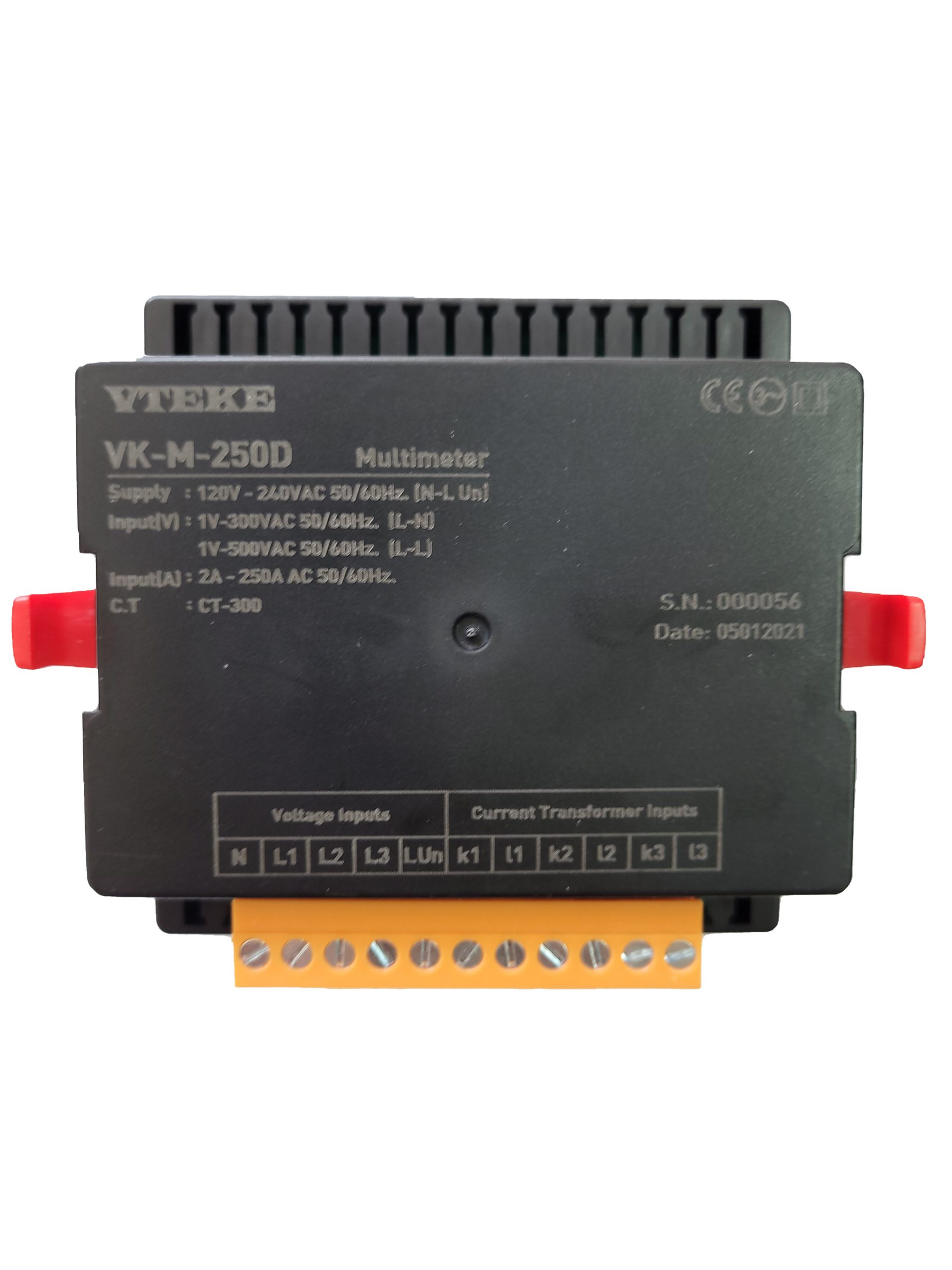

Multimeter & Energy Analyzers Panel Multimeter 96×96, Direct connection with built-in Current Transformers 250A

Description

Reviews (0)

Technical Data

Parameter	Value
Operating Voltage	150-240VAC
Operating Frequency	50 / 60 Hz
Operating Power	<6VA
Operating Temperature	-20°C…..55°C
Input Voltage (L-N)	1V – 300VAC
Voltage Measuring Range	1V – 300VAC (L-N)
	1V – 500VAC (L-L)
Current Measuring Range	2A to 250A direct.
	CT is included
Accuracy	%±1
Supported Connection	3P4W
Weight	<325Gr
Protection Class	IP41[Front Panel], IP20[Body]
Connection Type	Plug-in Terminal Connection
Cable Diameter	Max 2.5mm²
Mounting	Assembly to panel front cover
Panel Hole	91mm x 91mm
Working Altitude	<2000 meter
