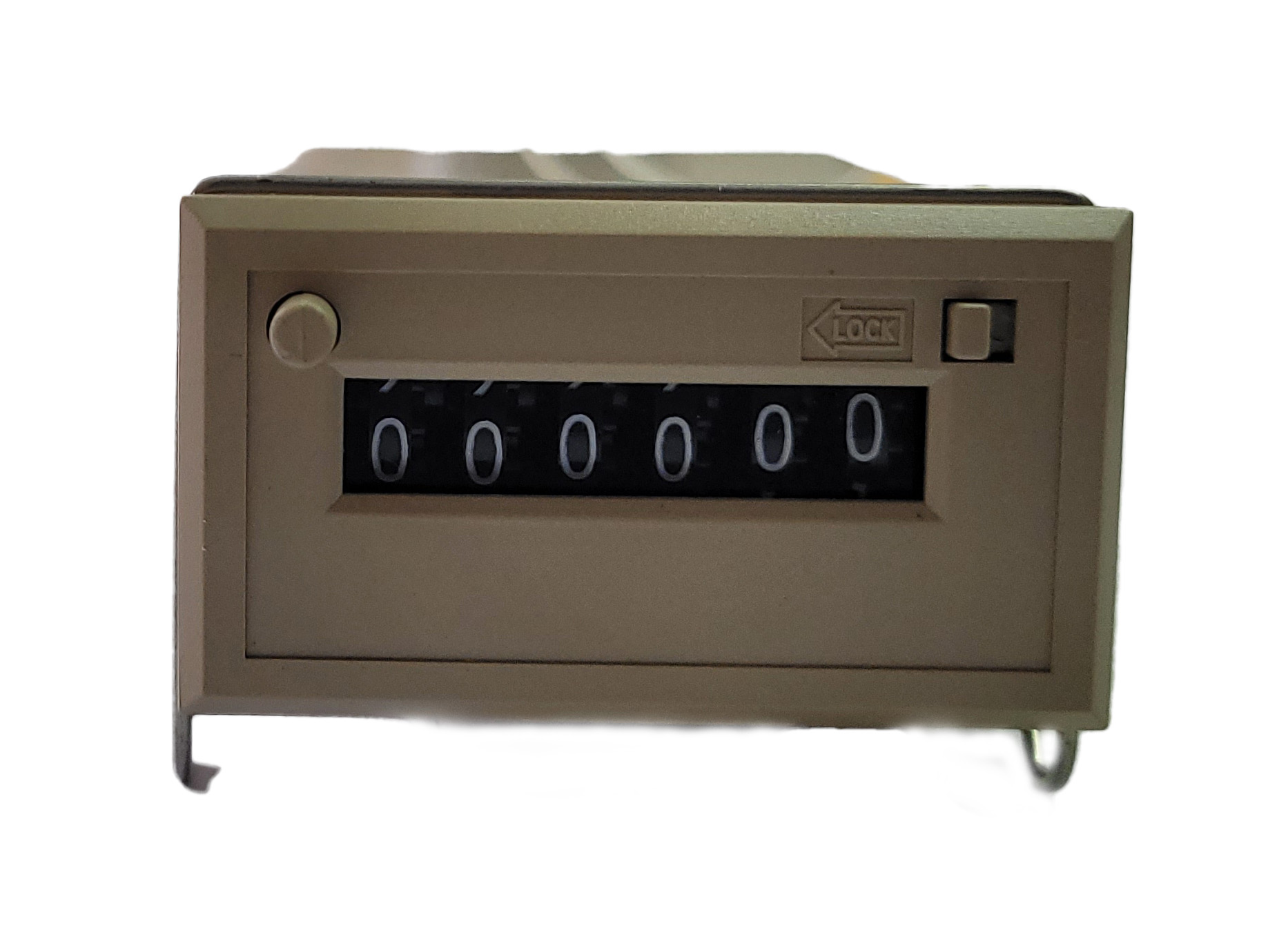

OCM-220-AC Electro-magnetic Counter is designed to record the number of operations for electrical machine operation.
Technical Data
| Parameter | Value |
| Operating Voltage | 220VAC , ±%10 |
| Rated Frequency | 50-60Hz |
| Power Consumption | 3VA |
| Insulation Resistance | ≥ 100MΩ |
| Dielectric Strength | 1500VAC rms |
| Contact Rating | 250VAC 5A (resistive load) |
| Counting Speed | 10CPS |
| Life | 2×107 times |
| Operating Temperature | -10oC – +50oC, 48-85% RH |
Dimensions
