Earth Leakage Relay

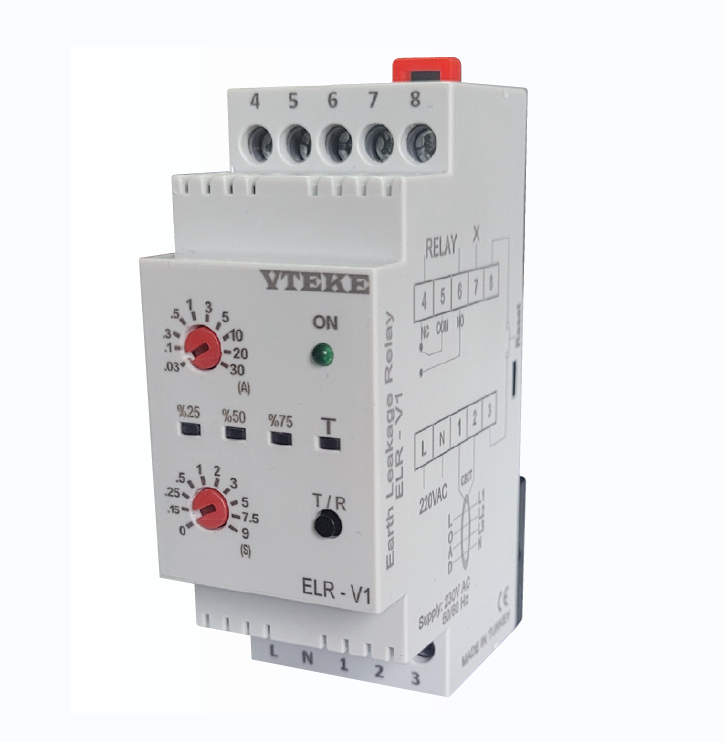

Modular type Earth Leakage Relay ELR-V1 is designed to protect load and lines against grounding fault. Thanks for adjustable reset time and leakage current trip setpoint nobs, ELR-V1 can be used in various applications where grounding fault or insulation failure needed to be protected

• Compact case
• Adjustable leakage current threshold to monitor true RMS from 30mA to 30A.
• Adjustable time delay from 0 to 9sec.
• Suitable for single phase 2 wire and for 3-phase 3 or 4 wire systems
• Leakage level indication by 4 LEDs to by level of 25%, 50%, 75% or 100%
• Can be rest or test remotely by external button or from the device front panel button.
• It detects CBCT absance or short circuit
