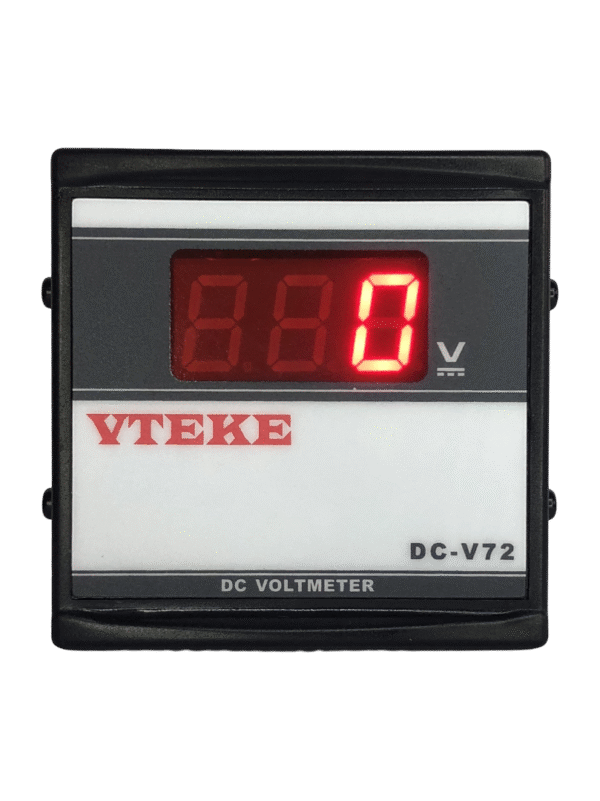

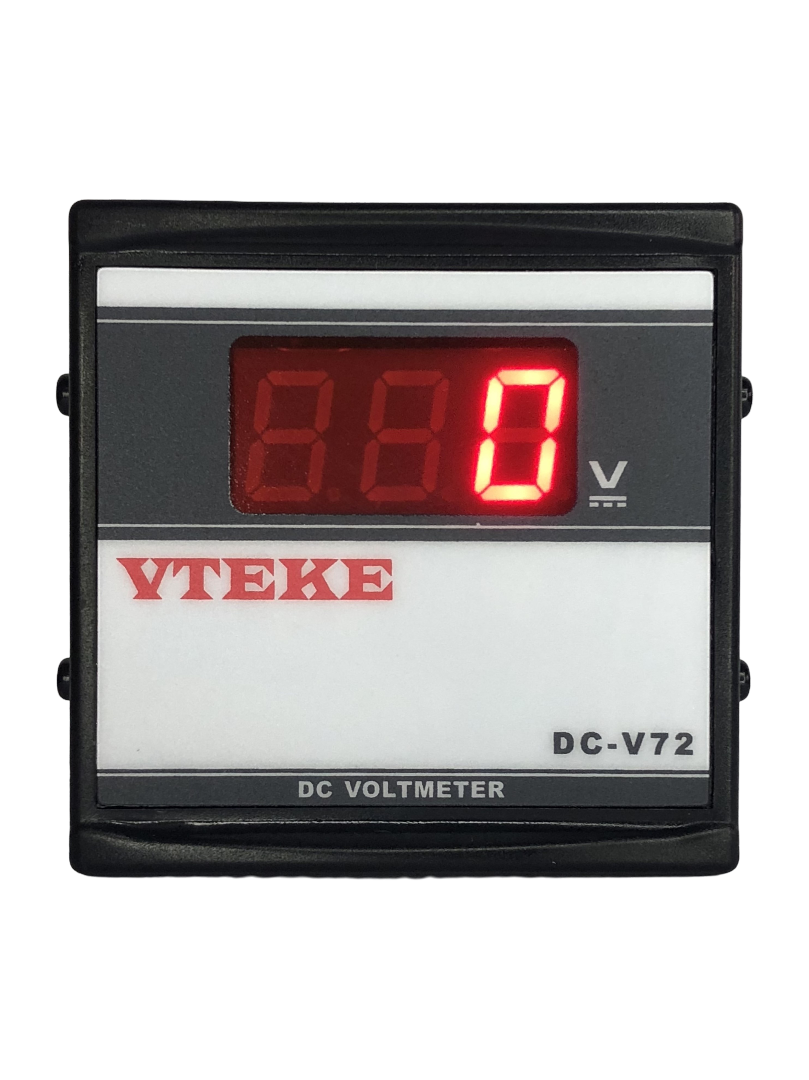

DC Panel Voltmeter 72X72

Description

Reviews (0)

Technical Data

Parameter	Value
Operating Voltage	150-270VAC
Operating Frequency	50 / 60 Hz
Operating Power	<6VA
Operating Temperature	-20°C…..55°C
Voltage Measuring Range	1V – 50VDC or
(VK-V72DC)	1V – 300VDC
Accuracy	%±2 (VK-V72DC)
	%±5 (VK-A72DC)
Weight	<220Gr
Protection Class	IP41[Front Panel], IP20[Body]
Connection Type	Plug-in Terminal Connection
Cable Diameter	1.5mm²
Mounting	Assembly to panel front cover

Connection Diagram

Dimensions
