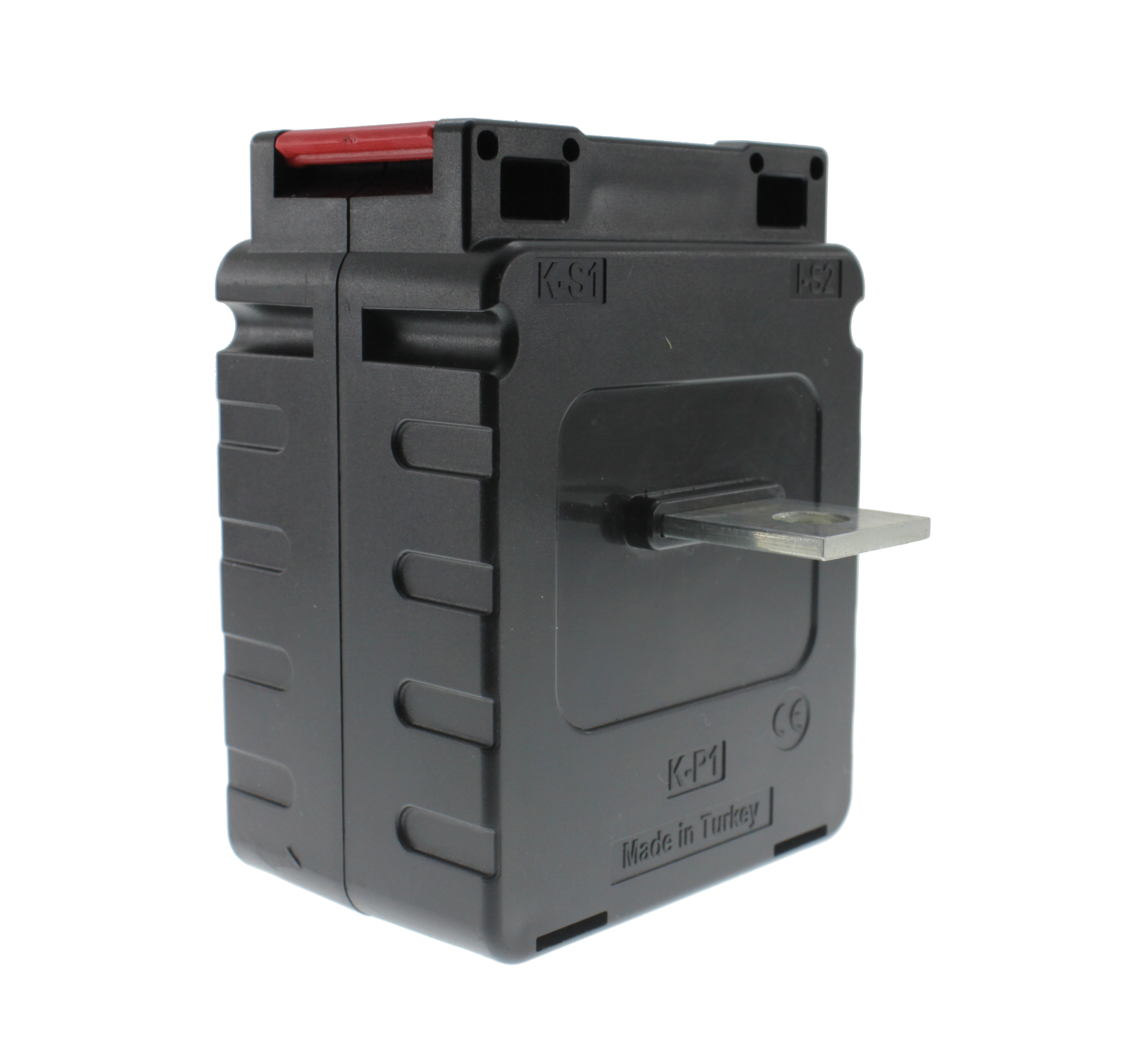

Current Transformer, Built-in Busbar, 10/5A to 200/5A

Current Transformer, Built-in Busbar, 10/5A to 200/5A

is built-in bar type current transformer with sealable terminal cover,
suitable for primary currents from 5A to 200A AC;
available in accuracy classes Class 0.5S, 0.5 or Class 1.0.

Contact For More Details
Description
Reviews (0)

Technical Data

Parameter Value
Standards IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869-2
CT Ratio From 5A to 200A
Rated Power Up to 15VA
Accuracy class Class 0.5S, Class 0.5, Class 1.0
Terminal Integral terminal cover, high cross section brass terminal for extra safety
Case Non-flammable self-extinguishing ABS/PC
Mounting Plate Mounted, KK0001
Primary conductor 25 x 3 built-in busbar
Ambient temperature (operation) -25 C ~ +85 C
Number of input 1
Thermal rated short-time current Ith = 60 In
Thermal rated continuous current Id = 1 * In
Rated frequency 50 Hz … 60 Hz
Surge current limitation factor FS 5
Test voltage 3 kV for 1 min
Max system voltage 0.72 kV

Coding Table

PRIMARY CLASS1.0 CLASS 0.5 CLASS 0.5S
CURRENT (A) CODE CODE CODE CODE CODE CODE
BURDEN 5VA BURDEN 10VA BURDEN 5VA BURDEN 10VA BURDEN 5VA BURDEN 10VA
5/5 A BK55105 BK55107 BK55205 BK55207 BK55305 BK55307
10/5 A BK105105 BK105107 BK105205 BK105207 BK105305 BK105307
15/5 A BK155105 BK155107 BK155205 BK155207 BK155305 BK155307
20/5 A BK205105 BK205107 BK205205 BK205207 BK205305 BK205307
25/5 A BK255105 BK255107 BK255205 BK255207 BK255305 BK255307
30/5 A BK305105 BK305107 BK305205 BK305207 BK305305 BK305307
40/5 A BK405105 BK405107 BK405205 BK405207 BK405305 BK405307
50/5 A BK505105 BK505107 BK505205 BK505207 BK505305 BK505307
60/5 A BK605105 BK605107 BK605205 BK605207 BK605305 BK605307
75/5 A BK755105 BK755107 BK755205 BK755207 BK755305 BK755307
80/5 A BK805105 BK805107 BK805205 BK805207 BK805305 BK805307
100/5 A BK1005105 BK1005107 BK1005205 BK1005207 BK1005305 BK1005307
125/5 A BK1255105 BK1255107 BK1255205 BK1255207 BK1255305 BK1255307
150/5 A BK1505105 BK1505107 BK1505205 BK1505207 BK1505305 BK1505307
200/5 A BK2005105 BK2005107 BK2005205 BK2005207 BK2005305 BK2005307
