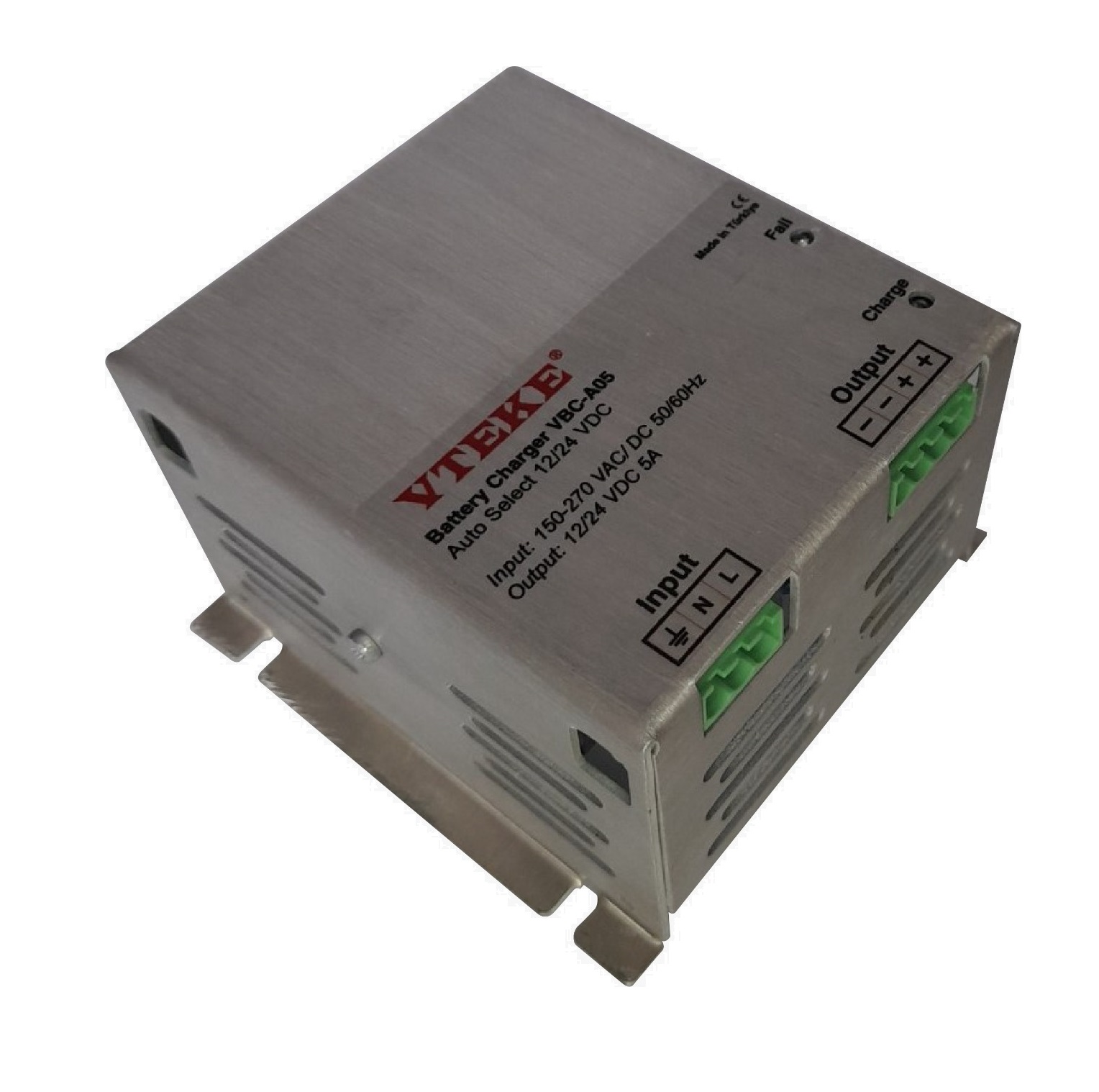

Automatic Battery Charger 12/24V 5A (universal output)

Description

Reviews (0)

Features

FEATURES

Reverse Battery Connection Protected

Output Short Circuit and Over Load Protection

High Temperature Protection

LED Status Indicator

Technical Data

Technical Data
AC Input Voltage	150-270 VAC
DC Input Voltage	150-270 VDC
Input Current	mxm 0.87 A
Maksimum Input Power	175 Watt
AC Input Frequency	45-78 Hz
Efficiency	> 85%
DC Output Voltage	13.8-27.6 auto select
DC Output Charge Current	5.0 A DC
Output Power	160 watt max. continious
Output Ripple	< 0.5 % of Vo (peak to peak)
Load Regulation	< 0.5% of Vo
Line Regulation	< 0.01 % of Vo
Warm up Voltage	< 0.5 % of Vo
Overshoot	< 2 % of Vo (100% to %0 load change)
Current Consumption from battery	< 22 mA
Overload protection	limits output current to 6A
Short circuit protection	limits output current to 6A
Short circuit duration	continious
High temperature protection	limits internal temp. to 85 C
Start-up Time	5 sec
Isolation Voltage	2 kV AC

Dimensions
