Analog Direct Voltmeter 72 x 72, 500V, 300V or 600V

Analog Direct Voltmeter 72 x 72, 500V, 300V or 600V

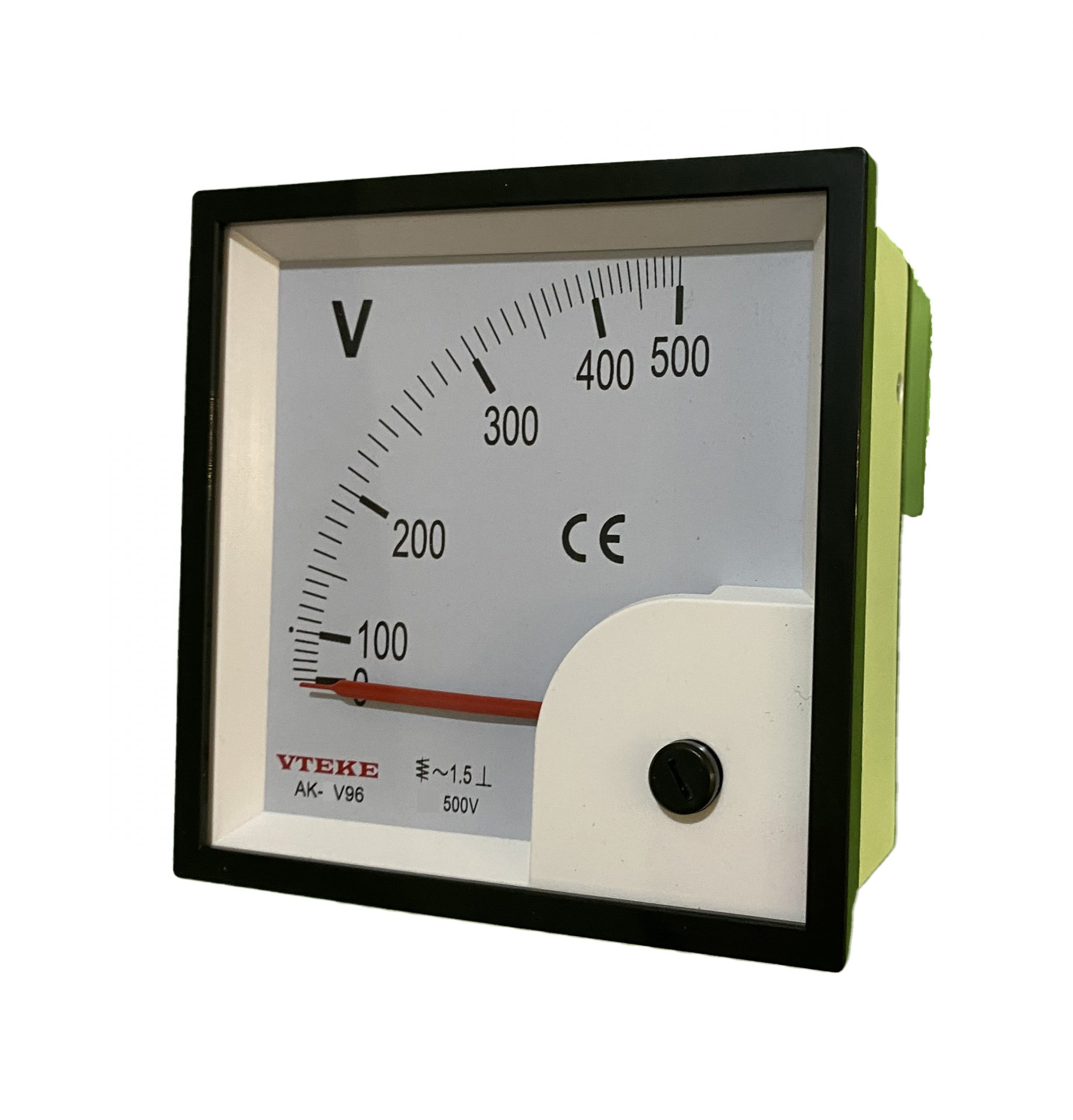

K-V SERIES is Panel-type analog VOLTMETER with sealable terminal cover,
suitable for rated voltage of 300V, 500V and 600V.
Also it is available for Medium Voltage system to be used with PT until 60kV.
Higher voltage can be supplied on request.
Scale is almost linear (above 10% readings) with knif edge pointer.
Housing is from polycarbonate to tolerate high tempratures.

Contact For More Details
Description
Reviews (0)

Coding Table

96X96 SIZE CODE 72X72 SIZE CODE PT secondary Max Voltage
AK-V96-300V AK-V72-300V NA 0 to 300V
AK-V96-500V AK-V72-500V NA 0 to 500V
AK-V96-600V AK-V72-600V NA 0 to 600V
AK-V96-XX/0.1 AK-V72-XX/0.1 100V 1kV to 400kV
AK-V96-XX/0.11 AK-V72-XX/0.11 110V 1kV to 400kV
AK-V96-XX/0.22 AK-V72-XX/0.22 220V 1kV to 400kV

Technical Data

Parameter Value
Standards IEC 60051-2, EN 60051-2
Meter Type Iron Moving Coil
Rated Input Voltage 300V, 500V & 600V
(for PT uses, secondary voltages are: 100V, 110V & 220V)
Accuracy Class 1.5
Terminal İntegral terminal cover for extra safety
Case Non-flammable self-extinguishing ABS / polycarbonate
Ambient temperature (operation) -25 C ~ +85 C
Test voltage 3 kV for 1 min
Max system voltage 0.72 kV
Frequency 45-65 HZ
Pointer Deflection 0 to 90 Degree
Front Panel (mm) AK-V72: 72×72, AK-V96: 96×96
Control Panel Cut Out (mm) AK-V72: 66.5 x 66.5 cm , AK-V96: 90.5 x 90.5 cm

Dimensions

Parameter Value
Standards IEC 60051-2, EN 60051-2
Meter Type Iron Moving Coil
Rated Input Voltage 300V, 500V & 600V
(for PT uses, secondary voltages are: 100V, 110V & 220V)
Accuracy Class 1.5
Terminal İntegral terminal cover for extra safety
Case Non-flammable self-extinguishing ABS / polycarbonate
Ambient temperature (operation) -25 C ~ +85 C
Test voltage 3 kV for 1 min
Max system voltage 0.72 kV
Frequency 45-65 HZ
Pointer Deflection 0 to 90 Degree
Front Panel (mm) AK-V72: 72×72, AK-V96: 96×96
Control Panel Cut Out (mm) AK-V72: 66.5 x 66.5 cm , AK-V96: 90.5 x 90.5 cm
